Pictures of the new TVS RTR 160 e-FI

Last year the Pulsar DTSI 200 along with Pulsar 220 DTSFI was unveiled at the Autocar 2006 show. Guess what was on display this year, The Apache RTR 160 eFI. Here are the first hand picture of the new TVS Apache RTR 160 e-FI (electronic Fuel Injected version) from the Speed Autocar performance show 2007.

pictures of Apache RTR 160 eFI:-

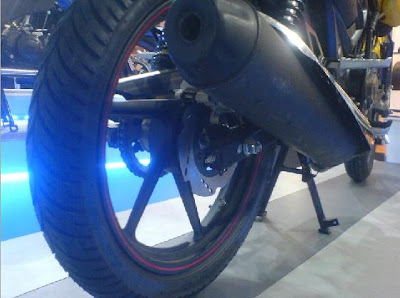

Rear disc brake

The speedo looks like it has a dash of crome.

I feel the single sport stripe on Rtr looks more appealing than this.

The tank looks more muscular.
Pictures courtesy Mr. Sawant my orkut buddy.
Techincal Specifications of the Apache RTR 160 eFI:
Engine
Displacement: 159.7cc
Engine: Fuel injected 4-stroke single cylinder
Max. Power: 11.54kw @ 8500 ( 15.7bhp @ 8500 )
Max. Torque: 13.1 Nm @ 6500
Gear Box: 5 Speed constant mesh
Clutch: Multi-Plate Wet Type
Bore x stroke (mm): 62x 52.9
Compression Ratio: 9.5:1
Fuel system: Electronic Fuel injection

Wheels & Tyre
Wheel Type: Diecast Alloy
Tyre Front: 90 x 90 - 17
Rear: 100 X 80 - 18

Brakes
Brake Front: Dia 270mm disc brake, petal type
Brake Rear: Drum 130mm dia, Optional Rear Disk brake

Suspension
Front: Telescopic Hydraulic fork
Rear: Mono tube 5 step adjustable Canister - Gas filled shock absorbers

Electricals
Head lamp: 12V 35/35W Halogen HS1, Clear lens with MFR
Tail lamp: 12V 0.5 W. LED-Twin triangle with prism on lens
Turn signal lamp: 12V 10W
Battery type & capacity: 12V, 9.0 Ah
Ignition system: High energy IDI System

Dimensions
Height: 1100 mm
Length: 2020 mm
Width: 730 mm
Wheelbase: 1300 mm
Ground Clearance: 180mm
Kerb weight: 136 kgs
Fuel Tank Capacity: 16.0 Litre

Performance
Max speed 120 kph (company claimed)

Now here is the real stunner:-
pictures by nikibusa from teambhp

Apache RTR 160 with performance kit
Picture by rajr a senior xbhpian
Beat this:-
0-60 -3.2 sec
0-100- 9.5 sec
Top speed 140 km /hr
Maximum Power 20.6 BHP
Compression ratio : 12.5 : 1
The performance kits are also expected to be made available by TVS soon.
Some more pictures by nikibusa from teambhp.
